A quality pipe reducer For sale is a pipe connector used to connect two pipes or fittings of different diameters to achieve a smooth transition of fluids in a piping system. It is usually made of metal materials to meet the needs of different industrial environments.

Key Word:

Butt weld fittings

Category:

reducer

Phone:

+86 18931701057 （Tel/Whatsapp/Wechat）

E-mail:

admin@hbyhsteel.com

Inquire

Related products

Products Detial

A quality pipe reducer For sale is a pipe connector used to connect two pipes or fittings of different diameters to achieve a smooth transition of fluids in a piping system. It is usually made of metal materials to meet the needs of different industrial environments.
First of all, the design of the reducer includes two connection ports, a larger port and a smaller port. This allows it to connect two sections of pipes with different diameters, allowing the fluid to transition smoothly from one diameter to the other, preventing drastic fluid velocity changes in the pipe system. This is critical to maintaining smooth fluid flow and minimizing fluid pressure losses.
Secondly, the material selection of the reducer depends on the specific application scenario. In environments that deal with corrosive media or require high strength, stainless steel or other alloy materials with strong corrosion resistance are usually used. This ensures the stability and durability of the piping system.
Finally, the reducer is relatively easy to install, usually by welding, threading, or clamping. This makes it a common connecting element in piping systems to meet the transition and connection needs between different pipe diameters.
Quality pipe reducer For sale plays an important role in pipeline engineering, ensuring the efficient operation and fluid transfer of pipeline systems.

Standard drawing of Reducer.

Quality pipe reducer For sale plays an important role in pipeline engineering, ensuring the efficient operation and fluid transfer of pipeline systems.

Dimensions

NPS	O.D L mm inch	O.D S mm inch	H mm inch
3/4 x 1/2	26.7 1.05	21.3 0.84	38 1.50
3/4 x 3/8	26.7 1.05	17.3 0.68	38 1.50
1 x 3/4	33.4 1.32	26.7 1.05	51 2.00
1 x 1/2	33.4 1.32	21.3 0.84	51 2.00
1-1/4 x 1	42.2 1.66	33.4 1.32	51 2.00
1-1/4 x 3/4	42.2 1.66	26.7 1.05	51 2.00
1-1/4 x 1/2	42.2 1.66	21.3 0.84	51 2.00
1-1/2 x 1-1/4	48.3 1.90	42.2 1.66	64 2.50
1-1/2 x 1	48.3 1.90	33.4 1.32	64 2.50
1-1/2 x 3/4	48.3 1.90	26.7 1.05	64 2.50
1-1/2 x 1/2	48.3 1.90	21.3 0.84	64 2.50
2 x 1-1/2	60.3 2.38	48.3 1.90	76 3.00
2 x 1-1/4	60.3 2.38	42.2 1.66	76 3.00
2 x 1	60.3 2.38	33.4 1.32	76 3.00
2 x 3/4	60.3 2.38	26.7 1.05	76 3.00
2-1/2 x 2	73.0 2.88	60.3 2.38	89 3.50
2-1/2 x 1-1/2	73.0 2.88	48.3 1.90	89 3.50
2-1/2 x 1-1/4	73.0 2.88	42.2 1.66	89 3.50
2-1/2 x 1	73.0 2.88	33.4 1.32	89 3.50
3 x 2-1/2	88.9 3.50	73.0 2.88	89 3.50
3 x 2	88.9 3.50	60.3 2.38	89 3.50
3 x 1-1/2	88.9 3.50	48.3 1.90	89 3.50
3 x 1-1/4	88.9 3.50	42.2 1.66	89 3.50
3-1/2 x 3	101.6 4.00	88.9 3.50	102 4.00
3-1/2 x 2-1/2	101.6 4.00	73.0 2.88	102 4.00
3-1/2 x 2	101.6 4.00	60.3 2.38	102 4.00
3-1/2 x 1-1/2	101.6 4.00	48.3 1.90	102 4.00
3-1/2 x 1-1/4	101.6 4.00	42.2 1.66	102 4.00
4 x 3-1/2	114.3 4.50	101.6 4.00	102 4.00
4 x 3	114.3 4.50	88.9 3.50	102 4.00
4 x 2-1/2	114.3 4.50	73.0 2.88	102 4.00
4 x 2	114.3 4.50	60.3 2.38	102 4.00
4 x 1-1/2	114.3 4.50	48.3 1.90	102 4.00
5 x 4	141.3 5.56	114.3 4.50	127 5.00
5 x 3-1/2	141.3 5.56	101.6 4.00	127 5.00
5 x 3	141.3 5.56	88.9 3.50	127 5.00
5 x 2-1/2	141.3 5.56	73.0 2.88	127 5.00
5 x 2	141.3 5.56	60.3 2.38	127 5.00
6 x 5	168.3 6.62	141.3 5.56	140 5.50
6 x 4	168.3 6.62	114.3 4.50	140 5.50

*NPS: Nominal Pipe Size; O.D L: Outside Diameter at Bevel, large end; O.D S: Outside Diameter at Bevel, small end; H: Center-to-End.

Package

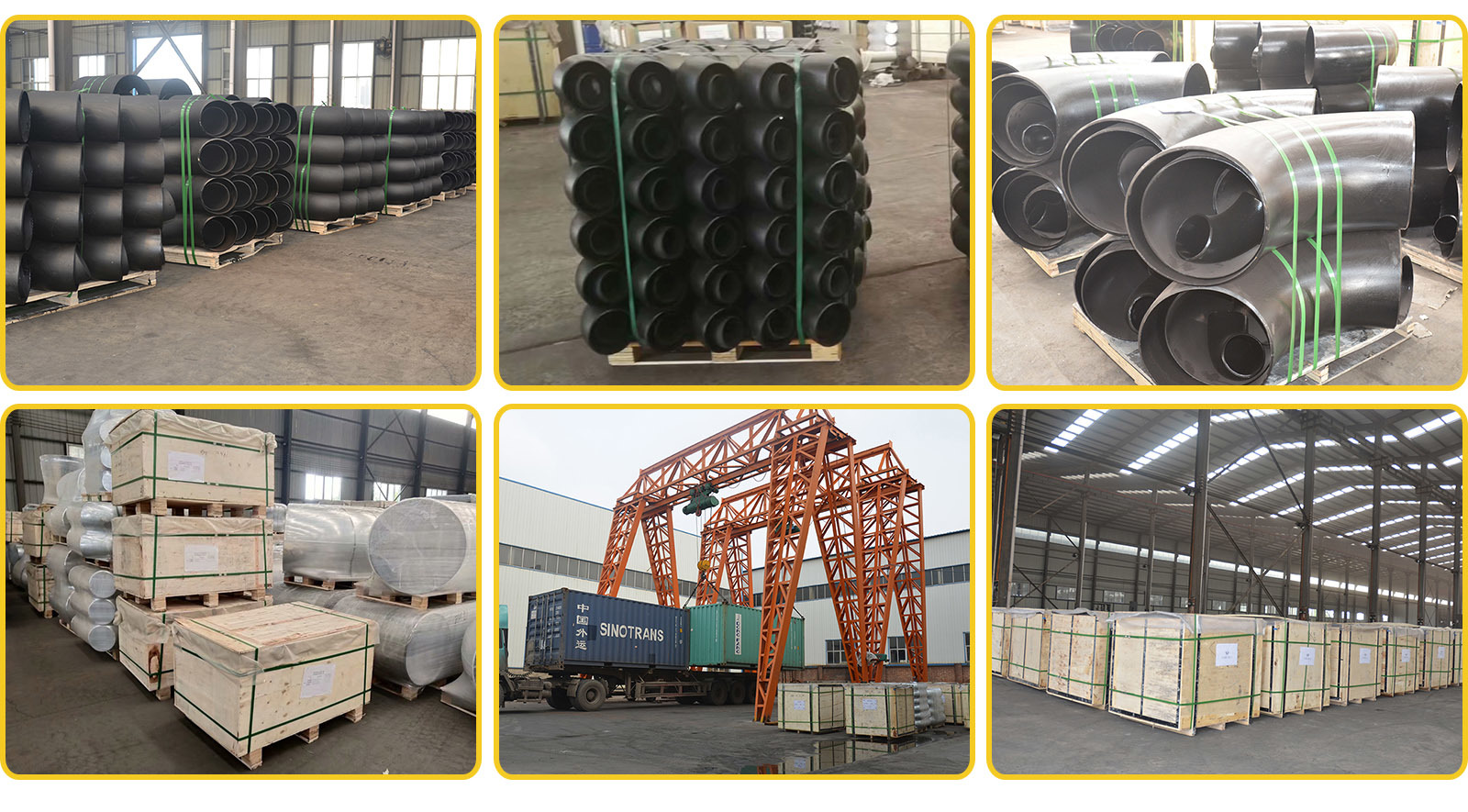

Factory Photo
